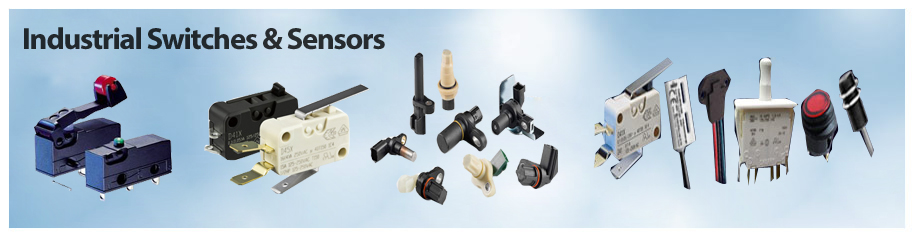

Switches & Sensors

We are leading dealer and distributor of Miniature Micro switches in Noida, Greater Noida and Ghaziabad . A micro switch, also known as miniature snap action switch. This switch is widely used in RO Machines as Float Switch, Low Pressure Switch ,Instrumentation, Pressure switch, valves, medical equipment, textiles control, system applications such as a door interlock, safety switches in elevators, vending machines etc. Having a diverse range of engineering applications, micro switches are available in various switch configurations, housing materials, actuator styles etc.

• Switching current 0.1 to 21 A at 250 VAC
• Wide variety of auxiliary actuators and terminal options
• Housing material PA 6 (T85 versions, colour black*) & PET (T125 & T150 versions, colour beige)
• Fulfills requirements of IEC 603351: GWFI at 850 °C, GWIT at 775 °C & GWT 750°C
• Ambient temperature -40 to max. +150 °C
• Approved according to IEC 61058-1 / UL 61058-1 (T85 versions) & IEC 61058 and UL 1054 (T125 & T150 versions)
• Cadmium-free contact materials
• Halogen-free plastic material (T85 versions)
• Degree of protection IP40

Send Enquiry »

We are leading dealer and distributor of Sub miniature Micro switches in Noida, Greater Noida and Ghaziabad . The Sub miniature DB series is a precision sub miniature switch with high repeat accuracy with a wide variety of auxiliary actuators available used widely in automotive, industrial and medical instruments applications.

• Precision subminiature switch with high repeat accuracy
• Switching Current 0.1 A to 10 A AC (model dependant)
• Wide variety of auxiliary actuators available
• Actuators can also be retrofitted
• High contact stability due to specific contact materials
• Ambient temperature -40 to max. +120 °C
• Mechanical life up to 15 x 106 actuations
• Approved according to EN 61058 and UL 1054 Degree

Send Enquiry »

We are leading dealer and distributor of Water Proof Micro switches in Noida, Greater Noida and Ghaziabad. This Sub miniature DC series is a waterproof sealed precision sub miniature switch with high repeat accuracy with a wide variety of auxiliary actuators available used widely in automotive and medical applications.

• IP65 & IP67 sub miniature switch with high repeat accuracy
• Switching Current 0.1 A to 10 A AC (model dependant)
• Wide variety of auxiliary actuators
• Actuators can also be retrofitted
• High contact stability due to specific contact materials
• Ambient temperature -40 to max. +120 °C
• Mechanical life min. 1,000,000 operations
• Approved according to EN 61058 and UL 1054
• Silicon-free version available

Send Enquiry »

We are leading dealer and distributor of CHERRY rocker switches in Noida, Greater Noida and Ghaziabad. CHERRY rocker switches are the perfect choice for economical, compact switching, in current ratings up to 20 amps. They're available in a wide variety of colors, in both lighted and non lighted designs. Lighted switches include both neon and incandescent bulbs for AC or DC lighting. Typical applications include on and off-road vehicles, industrial handling and agricultural equipment, medical systems, powered garden tools, instruments, Appliances etc.

• Single throw and double throw options
• Variety of terminal options
• Industry standard mounting dimensions
• 10 and 20 amp switching in a miniature package
• Ambient temperature -40 to max. +150 °C
• Choice of actuator and housing color
• Self locking tabs and anti rotation pin for snug fit

Send Enquiry »

We are leading dealer and distributor of Limit switches in Noida, Greater Noida and Ghaziabad. A limit switch is an electro-mechanical device that consists of an actuator mechanically linked to a set of contacts. When an object comes into contact with the actuator, the device operates the contacts to make or break an electrical connection. Limit switches are used in a variety of applications and environments because of their ruggedness, simple visible operations, ease of installation and operational reliability.
Limit switches are available in a variety of body, rotary arm styles, operation requirements, and environmental factors including moisture, contamination, temperature, shock and vibration. Limit Switch used in Injection molding machinery, PLC interface, machine tool equipment, elevators, escalators and moving stairs, gaming machines, material handling, packaging and textile equipment, food and beverage, industrial doors, scissor and platform lifts, electronic assembly equipment.
Features :

• 4 series meet IEC standards for global acceptance
• Miniature and Standard footprints
• Choice of plastic, metal, and three conduit options
• Variety of mounting, head styles, switching characteristics
• Available with galvanically isolated contacts for controlling separate circuits
• 3 series offer rugged, die-cast body and epoxy coating
• Sealed to NEMA 1, 3, 4, 4X, 6, 6P, 12, 13 and NEMA IP65/66/67
• Type 316 case stainless steel body available
• Multiple mounting and actuator options
• Boss-and-socket head design for secure head-to-body retention
• All-metal drive train
• UL, CSA, CE, CCC approvals

Send Enquiry »

We are leading dealer and distributor of Reed switches in Noida, Greater Noida and Ghaziabad. A dry-reed switch assembly contains ferromagnetic contact blades, hermetically sealed in a glass envelope which is filled with an inert gas. The switch is operated by an externally generated magnetic field, either from a coil or permanent magnet.

• Automotive parts: doors, sun roof, liuid level and position sensing, etc.
• Security for doors, windows, detection of smoke
• Toys: electronic board games, LEGO sensors, bicycle speedometers
• Industrial applications: pressure gauges, flow meters, key-knob switches
• Domestic appliances: coffee machines, humidifiers, water and detergent sensing in washing machines and dish washers
• Electronics: Notebook computers, cellular phones, copiers, etc.

Features

• Long life
• Contacts isolated from the environment
• Superior glass-to-metal seal
• Ambient operating temperature -55 to +125°C
• Low operating power
• Plated or sputtered ruthenium on diffused gold for very low and stable contact resistance
• Better than 10¹²open resistance
• Low cost compared with other magnetic devices
• UL recognition for most types

Send Enquiry »

We are leading dealer and distributor of Reed Relay in Noida, Greater Noida and Ghaziabad. A reed relay, which uses an electromagnet to control one or several reed switches, has contacts which are mounted on magnetic reeds that are scaled into a long narrow glass tube. An actuating coil is wound on an auxiliary ferrite-core structure or around the glass tube in order to provide the magnetic field that is required for the relay to operate.
Some applications for reed relays are:

• Broadcasting and video equipment
• Security
• Mobile phone base stations
• Instrumentation
• Process Control
• Automatic Test and Measurement Equipment
• Industrial

Send Enquiry »

We are leading dealer and distributor of Magnetic Contact Switches in Noida, Greater Noida and Ghaziabad. Magnetic Contact Switches can be added to existing wired Alarm Systems. They are ideal for protecting doors, windows and patio doors and any opening device such as a drawer or cupboard for example. In the event of contact being broken then the alarm will be activated immediately. Magnetic Contacts are perfect for use in situations where it is not suitable to fit PIR sensors, for example where there are pets or animals.

Magnetic Contact Switches when paired with permanent magnets present an ideal method of sensing and detecting movement, proximity, metal detection, and liquid level and flow measurement.

Magnetic Contact Switches come in hundreds of different sizes and shapes to meet a multitude of different application requirements. Reed Sensors are available in contact forms A, B, C, D, & E with power ratings up to 100W. They do well in long operating life applications if switching relatively low voltages and currents with life expectancy up to 1 billion operations.

Send Enquiry »

We are leading dealer and distributor of Magnetic proximity sensors in Noida, Greater Noida and Ghaziabad. Our Magnetic proximity sensors are non contact proximity devices utilize inductance, Hall effect principles, variable reluctance or magneto resistive technology. Magnetic proximity sensors are characterized by the possibility of large switching distances, available from sensors with small dimensions. They detect magnetic objects (usually permanent magnets), which are used to trigger the switching process.
As the magnetic fields are able to pass through many non-magnetic materials, the switching process can also be triggered without the need for direct exposure to the target object. By using magnetic conductors (e.g., iron), the magnetic field can be transmitted over greater distances so that, for example, the signal can be carried away from high temperature areas. The measurement of proximity, position and displacement of objects is essential in many different applications: valve position, level detection, process control, machine control, security etc

Send Enquiry »

We are leading dealer and distributor of electronic speed and position sensors in Noida, Greater Noida and Ghaziabad. We offers electronic speed and position sensors designed for enhanced reliability and an extended life. it uses multiple technologies to detect a change in magnetic field and create an electronic signal for control system interface. These technologies offer the ability to detect speed, direction, or position of a moving ferrous metal or magnetic target. Sensing is accomplished without contacting the target, and there are no moving parts. This eliminates mechanical wear of the sensor or target.

Speed Sensors with Hall effect technology full fills a wide array of applications due to a Hall effect sensor's ability to detect a magnetic target's zero speed and direction change and produce a digital output compatible with computers, motion control devices, position monitors and digital to analog converters. Zero speed Hall effect magnetic sensors are used in industrial applications to determine shaft or gear speed or direction by detecting fluctuations in the magnetic field.

Hall effect sensor applications for zero speed to 25 kHz detection of targets such as fine gears, and the change in target direction. Hall effect sensors are used as vehicle speed sensors, wheel speed sensors and ABS brake systems. Additional applications are turbines and as vehicle transmission speed sensors. The zero speed Hall effect magnetic sensors are used in speed applications and digital devices which switch from logic state 0 to logic 1 in the presence of a magnetic field of 50 gauss.

Send Enquiry »
